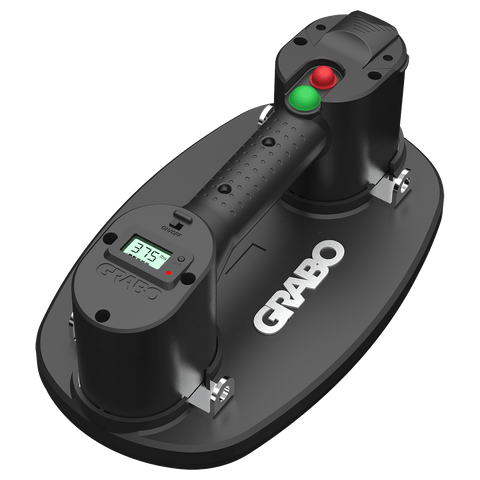

Grabo Pro Lifter 20 Heavy Duty Suction Cup

Grabo Pro Lifter 20 Heavy Duty Suction Cup

INStock Tools Supply

  • 28800
  • Save $ 1100


GRABO PRO-Lifter 20 kit includes

GRABO Pro-Lifter comes as a complete unit, with pre-installed battery and vacuum seal.

That is not all. There are other accessories in the kit, including a multi-socket charger and a heavy duty carry bag.  The complete kit is packaged in a functionally designed colorful box.

Package Contents:

  • 1 GRABO Pro tool (2021 model with digital display)
  • 1 multi-socket charger
  • 1 seal (preinstalled on the tool)
  • 1 battery (preinstalled on the tool)
  • 1 tough Oxford fabric carry bag
  • Operator’s manual in English
GRABO pro tool on top bag
GRABO Pro is equipped with a robust vacuum pump. The foam rubber vacuum seal on the GRABO Pro tool is strong and resistant to loss of vacuum pressure. Once the pressure pump is activated, it creates a strong suction and firmly attaches to any non-porous flat surface. The suction is strong enough to hold firm even loads as heavy as 375 lbs . In order to lift any slab of flat solid material, simply turn on the unit and place it straight on the surface. The GRABO Pro automatically monitors the vacuum and if vacuum pressure is lost the pump is automatically powered up until the vacuum pressure is restored.

The GRABO Pro-Lifter is designed for professionals. Unlike the other gigantic solutions, the tool is portable and handy. Living up to the promise of “Heavy Lifting – Made Easy”, the GRABO Pro is equally effective on smooth as well as coarse surfaces. The Pro-Lifter has a pumping capacity of 20 liters per minute, a best in class. So, say good-bye to unreliable, and often dangerous, manual suction cups for the job. With GRABO Pro you double your work efficiency with enhanced safety.

The tool is ergonomically designed to provide better grip and less fatigue when moving heavy objects. The tool is an effective vacuum lifter even for dusty, semi-porous or rough surfaces. The tool works perfectly with glass, wood, ceramic tiles, metals and other materials. Just like the Classic version the powerful vacuum pump and rechargeable battery pack are concealed within the grab handle.

Detailed sizes GRABO-PRO

Lifting Capacity:

Perpendicular Hold parallel lifting by Nemo GRABO vacuum Parallel Hold Suction cup lifting box
Glass 375Lbs ( 170 kg ) 265Lbs ( 120 kg )
Ceramic Tiles 375Lbs ( 170 kg ) 265Lbs ( 120 kg )
Metal 242Lbs ( 110 kg ) 242Lbs ( 110 kg )
Plastic 220Lbs ( 100 kg ) 220Lbs ( 100 kg )
Wood 220Lbs ( 100 kg ) 143Lbs ( 65 kg )
Rough Slate 176Lbs ( 80 kg ) 176Lbs ( 80 kg )
Rough Concrete 176Lbs ( 80 kg ) 176Lbs ( 80 kg )
Dry Wall 165Lbs ( 75 kg ) 143Lbs ( 65 kg )

The handle is also equipped with a digital display that shows the maximum weight that the GRABO Pro can safely lift at that very moment. The weight is displayed in both pounds and kgs.

The Pro-Lifter is equipped with a smart digital pressure sensor. This makes it even more effective on different surfaces. With a simple press of a button the lifting function is automatically activated and regulated. The sensor automatically provides for the optimum level of suction, keeping objects in complete control whether the object is being lifted or even during movement.

The digital display on the grab handle shows the pressure applied in both bars and psi. With the pressure sensors, you don’t have to worry about turning the vacuum pump on or off. In fact, the automatic sensor is especially useful when lifting and moving coarse materials. The sensors digitally detect and maintain the required pressure while transferring the object being lifted  . This provides for precision handling and installation without too much of a hassle. In any case the sensor automatically stops the pump on reaching maximum vacuum capacity of 11.6 PSI.

However, if you want to lift and move objects that have lighter mass, then the vacuum pump can be turned off. When you want to remove the tool from the object you simply push the red vacuum release button.

The tool operates on 14.8 volts 2600 mAh Li-ion removable battery. The battery takes two hours for a full charge. On a full charge, this powerful battery can last for 900 cycles or 1.5 hours on non-stop running. The battery lasts for a whopping 30 days on standby mode.

Just like the Classic model, GRABO PRO is also equipped with four lifting lugs placed on both sides of the grab handle. These lugs become handy in case the tool is to be used with additional grips or straps for support.

The GRABO Pro has been rigorously tested by professionals around the world. Given its compact design and competitive performance, the Pro Lifter is rapidly becoming a tool of choice, especially in the construction industry around the world.

GRABO PRO Troubleshoot
Buttons and Parts of GRABO Pro

Specifications:

Model/SKU GRABO PRO-LIFTER 20 / GP-1Li-FB
Battery 14.8VDC 2600mAh Li-ion
Rated Power 16W
Charger Input Voltage 100-240VAC 50/60Hz
Battery Charging Time ~2hrs
Non-Stop Running Time (Full Charge) 1.5hrs
Running Cycles (On Full Charge) 900 ON-OFF cycles of 10 seconds
Stand-by Mode (Charge Hold) 30 days
Pump Service Life 100000+ ON-OFF cycles / 800+ hrs continuous
Rated Air Flow 0.7cfm (20 L/min)
Maximum Vacuum Rate 11.6Psi (0.8 Bar, 80 kPa)
Maximum Lifting Capacity 375Lbs (170 kg)
L x W x H 11.77 x 7.22 x 4.76” (300 x 184 x 121 mm)
Net Weight (With Battery) 3.2Lbs ( 1.5 kg )
Working Temperature 32°F~140°F ( 0°~60 °C )
Applicable Surface Type Peak/valley heights less than 0.1” (3mm),
arc less than 5°
Additional Features Pump stops automatically at maximum vacuum
rate ( 11.6Psi / 0.8 Bar )
