Mapeguard Drain

Mapeguard Drain

Mapei

  • 9584

Drain with Bonding Flange

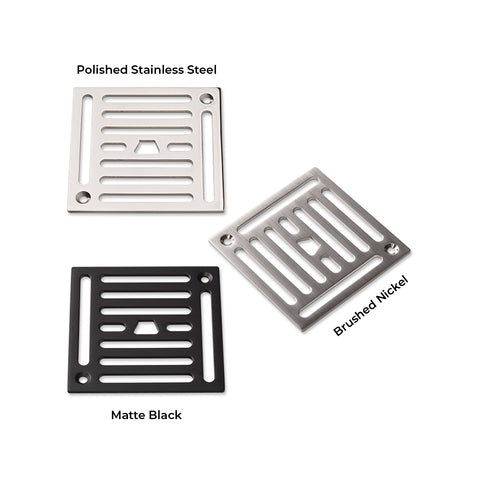

Use the Drop down menu above to View and Select between COLOR options

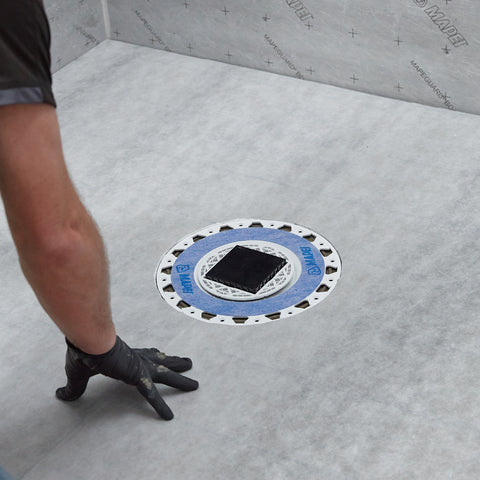

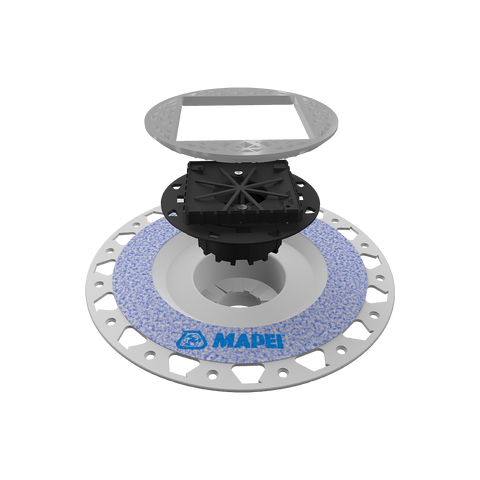

Mapeguard® Drain, with an integrated bonding flange and low profile for floor applications, is easy to install and solves common problems associated with shower pans and wet environments in residential, light commercial and commercial projects. Mapeguard Drain is designed to be used with Mapeguard Pre-Formed Shower Tray and floated mortar-bed installations complemented by MAPEI’s industry-recognized topical waterproofing system products.

  • Integrated bonding flange
  • Innovative weeping system
  • Made from heavy-duty PVC or ABS plastic
  • Easy to install
  • Tile support web for mosaic tile
  • Allows 360-degree adjustment
  • Easy alignment and placement of horizontal adjustment cup
  • Designed for liquid and sheet waterproofing
  • Threaded height adjuster to accommodate tile and stone thicknesses, with lock-in-place precision
  • Drain assembly solves several common problems, including discoloration of stone and grout around drains due to trapped moisture
  • Grate shim for perfect grate holder leveling adjustment if needed
  • Mortar guard provides plumbing protection during installation
  • Drain grate holder with inner sloped design
  • Fits standard 2" (5 cm) drain waste vent pipe
  • Complete single-source shower pan installation system
  • Best-BackedSM system warranty available


Note: MAPEI mortars must meet the ANSI A118.4H, ANSI A118.11 or ANSI A118.15H standard or better, or be classified as at least ISO 13007 C2E or C2F.


Note: To achieve one-day installation of a Mapeguard Shower System, use a MAPEI rapid-setting, polymer-modified large-and-heavy-tile mortar that is rated as A118.4FH or better, as well as a MAPEI waterproofing membrane and grout.
