Mapeguard Pre-Formed Shower Tray
Rigid, Lightweight, Waterproofed Tray
Use the Drop down menu above to View and Select between options
Mapeguard® Pre-Formed Shower Tray is part of MAPEI’s line of shower system products. Mapeguard Pre-Formed Shower Tray is the quick and easy alternative for shower-base installations. It is pre-sloped and made from high-density expanded polystyrene (EPS) with a high-quality waterproofing sheet membrane bonded to the polystyrene foam.
Waterproof, lightweight, durable and ready to tile, Mapeguard Pre-Formed Shower Tray simplifies and reduces installation time. Its waterproof attributes do not contribute to mold or mildew. Available in a variety of sizes, it can be cut to fit for customized sizing. A layered foam-honeycomb composite variation of the tray is available for enhanced rigidity and superior compressive strength.

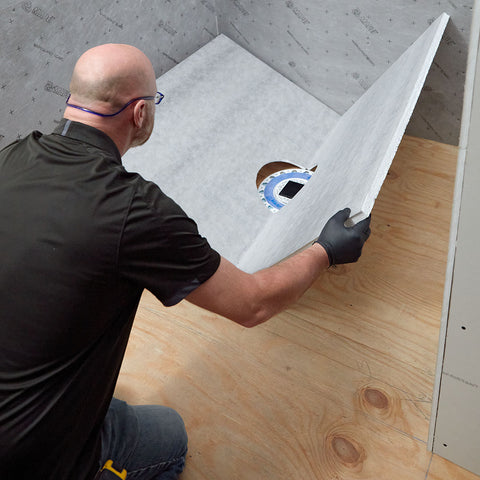

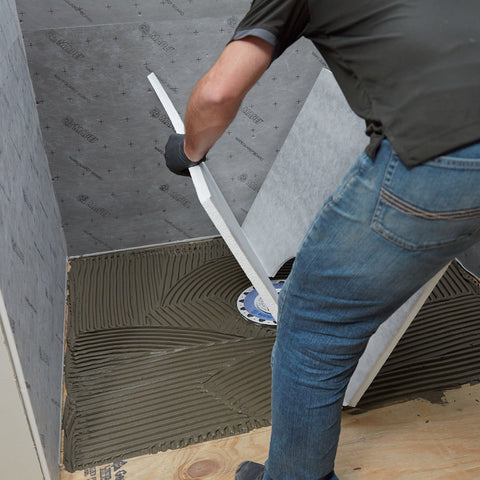

Mapeguard Pre-Formed Shower Tray is for use under thin-set installations of ceramic tile and dimensional stone for both residential and commercial shower applications. Mapeguard Pre-Formed Shower Tray comes with center-point and off-center-point drain layouts and is designed for use with Mapeguard Drain, which features an integrated bonding flange.
- Pre-sloped 1/4" per foot (6 mm per 0.30 m) to the drain
- Made from high-density, expanded polystyrene (EPS)
- Waterproof attributes that do not contribute to mold or mildew
- Lightweight, durable and rigid
- Easy to handle and install
- Available in multiple sizes
- Quick and easy to cut for customizable sizing
- Pre-applied waterproofed membrane that exceeds ANSI A118.10-S
- Available in variations of foam or foam-honeycomb composite, with the foam-honeycomb version providing enhanced rigidity and superior compressive strength
- Designed for use with Mapeguard Drain (sold separately)
- Foam-honeycomb composite version is approved for use with tiles smaller than 2" x 2" (5 x 5 cm)
- Can be extended with application of dry-pack mortar and a MAPEI waterproofing membrane
- Part of a single-source warranted system from MAPEI
